Suitable for our Eclipse heaters, the Affinity Eclipse Controllers allow for incremental adjustment of both heat and light output for precise control, and more settings than ever to enjoy the comforts of your Eclipse outdoor heater.
The new Affinity Eclipse Series comes in available channel options of 1 or 5 – with each channel allowing for one Eclipse electric heater’s heat and light functions, already included in our Eclipse Portable model.

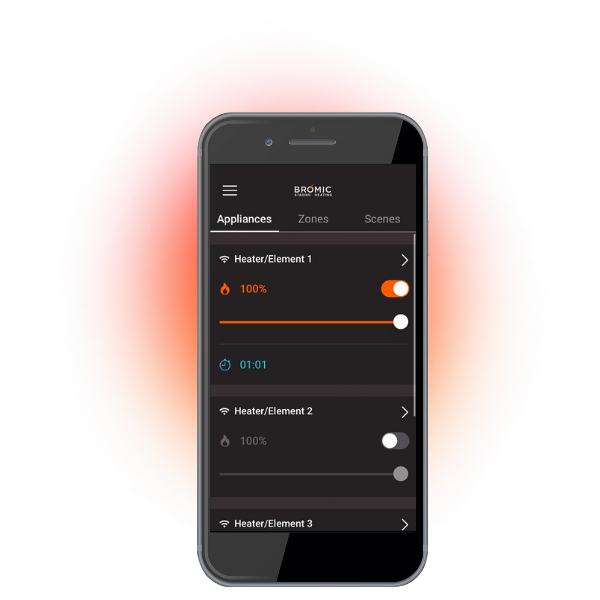

All controllers within the Affinity Collection are Wi-Fi & Bluetooth enabled to receive commands from our Bromic Heating App from anywhere within your Wi-Fi network or 30ft via Bluetooth.
$0.00 Includes GST
Created for our Eclipse Collection, the Affinity Eclipse Series offers 1 and 5 channel input options (coming soon) for our fixed Eclipse Pendant, with the 1 channel Eclipse Dimmer Series already included in our Eclipse Portable. Using the Bromic Heating app, have complete incremental control over not just the heat, but the LED light rail output as well, creating the perfect ambience – every time. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.
Get more from your Bromic heaters than ever before. Our Affinity Smart-Heat™ Controls pair seamlessly via Wifi, Bluetooth or optional Ethernet connection to our new Bromic Heating app, where users have complete, customizable control over their comfort in the palm of their hand:
| MODEL | Smart-Heat Control Eclipse Pendant 1 CH | Smart-Heat Control Eclipse Pendant 5 CH |
| PART NUMBER | BH8380051 | BH8380055 |
| NUMBER OF CHANNELS | 1 | 5 |
| VOLTAGE-MAX CAPACITY PER CHANNEL | 220-240V – 4kW | 220-240V – 6kW |
| OPERATING TEMPERATURE RANGE | -20°C to +30°C | -20°C to +30°C |
| NON-OPERATING TEMPERATURE RANGE | -30°C to +70°C | -30°C to +70°C |
| PROTECTION RATING | IP54 | IP54 |
| DIMENSIONS | 290 x 202 x 112mm | 500 x 340 x 252mm |
| WEIGHT | 1.6 kg | 15 kg |
| WIFI CONNECTIVITY | 2.4GHZ | 2.4GHZ |

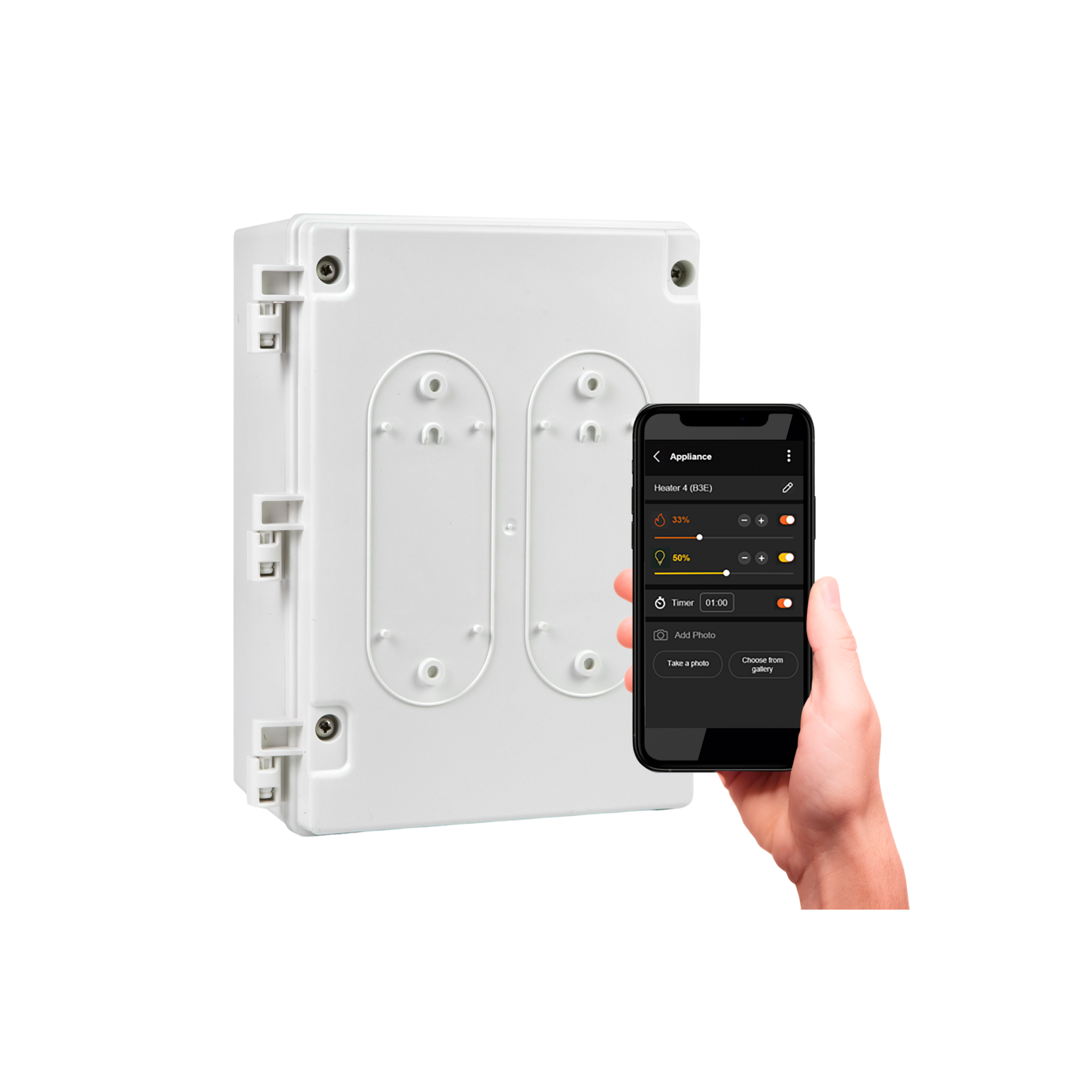

Eclipse 1 Channel Dimensions

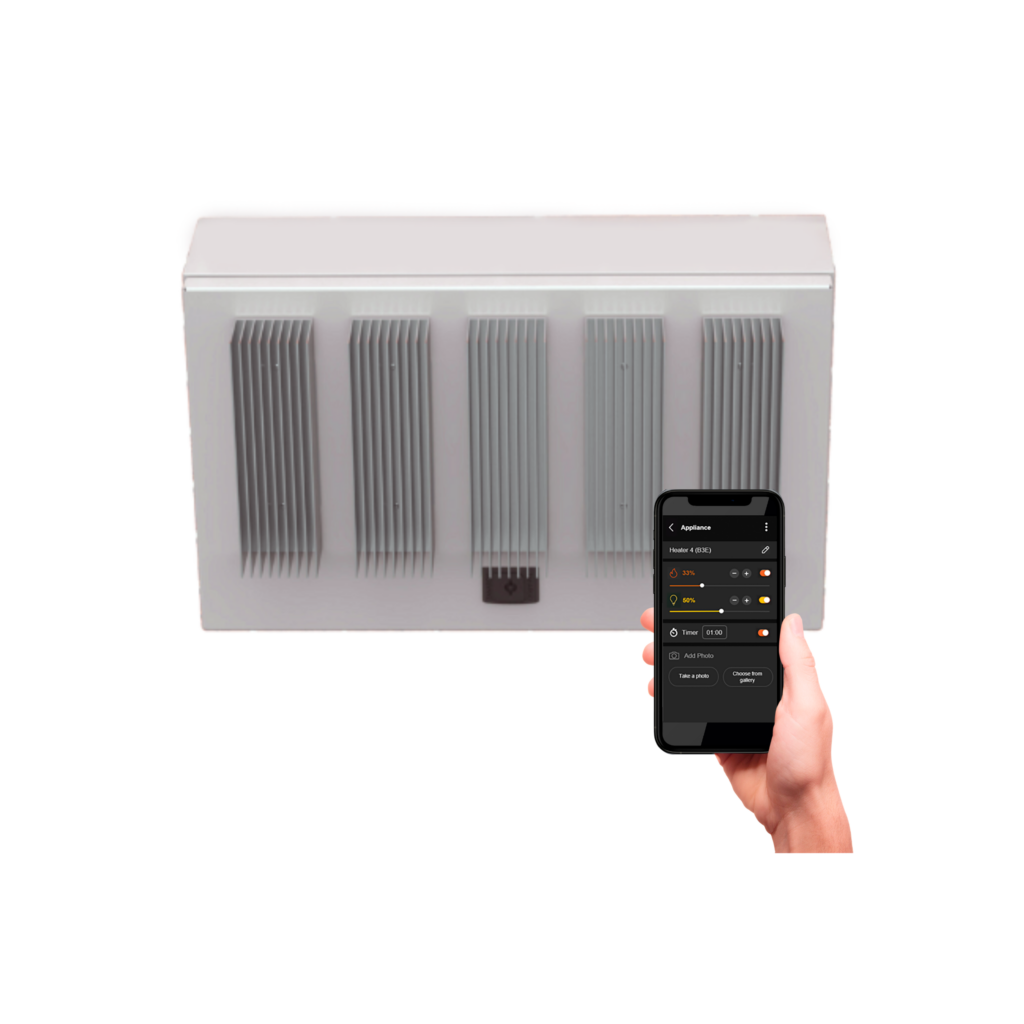

Eclipse 5 Channel Dimensions
The Affinity Eclipse is designed to control both heat and light functions of the Eclipse Pendant Heater.
The Affinity Eclipse is designed to control both heat and light functions of the Eclipse Pendant Heater.
The Affinity Eclipse is designed to control a single Eclipse Pendant Heater.
The key is supplied with the controller, packed inside the enclosure in a plastic bag. The key type is bi-locker and is available from all general electrical supply stores.
This function is available in different settings. Firstly, when you turn on an appliance, you can also set a timer off interval. You set this each time the heater is turned on and it will then countdown to the interval duration and automatically switch the appliance off. Set this function by clicking the appliance name to go to the detailed screen and setting the timer off internal at the bottom of the screen. Alternatively, you can set the timer off delay using schedules. This feature is only available to WiFi connected appliances.
The serial number is represented as a 14 digit code (eg CONF2C23080005). The digits will be different for each type of controller. The serial number is printed on the product label attached to the controller. It can also be located via the menu on the Bromic Smat-Heat App, under Site configuration-> Edit Site. All the controllers will be listed and within each controller setting you can identify the connected heaters.
For additional help with your new Affinity Controls, contact Bromic’s Technical Support team.
