Dimensions
On/Off 1 2 Channel Dimensions

On/Off 5 Channel Dimensions
FAQs
What products can be used with the Affinity On/Off control series?
The Affinity On/Off Controls can be used with all Bromic Heating Platinum, Tungsten and Cobalt Electric and Gas Heater models.
How many heaters can I control with this controller?
Single Channel Controls are rated for 6kW maximum, Dual Channel controls are rated for 12 kW maximum. Both Single and Dual Channel options can control multiple heaters within their maximum capacity. Each channel can control up to 10 gas heaters.
- Examples:
- A Single 6 kW On/Off Control is compatible with 2 Platinum 2300W Electric Heaters.
- A Dual 12 kW OnOff Control is compatible with 2 Tungsten 6000W Electric Heaters.
- A Single 6 kW On/Off Control is compatible with up to 10 Gas Heaters.
Can I control elements individually with the Affinity On/Off control series?
Yes, when using the 12 kW Dual Channel On/Off Control, uses can control the dual elements of these heaters individually:
- Platinum 4500W
- Tungsten 4000W, 6000W
Do these controllers have a timer function?
The Bromic App includes both timer/scheduling function.

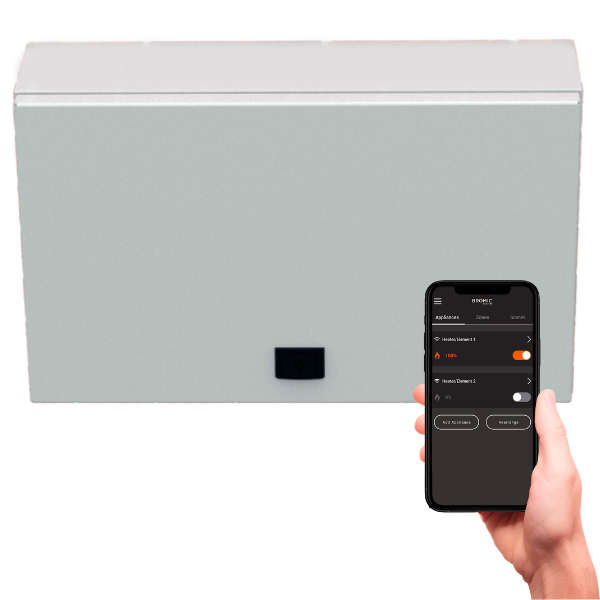

The 5 Channel controllers require a key to open. Where do I buy one?
The key is supplied with the controller, packed inside the enclosure in a plastic bag. The key type is bi-locker and is available from all general electrical supply stores.
I would like to switch heaters off after a time period?
This function is available in different settings. Firstly, when you turn on an appliance, you can also set a timer off interval. You set this each time the heater is turned on and it will then countdown to the interval duration and automatically switch the appliance off. Set this function by clicking the appliance name to go to the detailed screen and setting the timer off internal at the bottom of the screen. Alternatively, you can set the timer off delay using schedules. This feature is only available to WiFi connected appliances.
Where do I find the serial number of the controller?
The serial number is represented as a 14 digit code (eg CONF2C23080005). The digits will be different for each type of controller. The serial number is printed on the product label attached to the controller. It can also be located via the menu on the Bromic Smat-Heat App, under Site configuration-> Edit Site. All the controllers will be listed and within each controller setting you can identify the connected heaters.
Where do I get additional help?
For additional help with your new Affinity Controls, contact Bromic’s Technical Support team.
